Beyond the Basics

This page outlines additional features and configurations available to utilise 2ic Pallets to its full potential. Including those "Did you know you could do this?" kind of functions that'll make co-workers go, "Whoa, how did you do that?"

• Accept and Forward
• Allowed Locations
• Allowed Products
• Apply Custom Glossaries
• Apply Views
• Authorised Products
• Bulk Function
• Calculate Site Volumes
• Cancelled Transactions
• Compare Tool
• Data Sharing
• Default Sender
• Destinations
• Duplicate Filtering for Trading Partners
• Duplicate Filtering for Transactions
• General Accounts
• Grid Cell Shading
• Incomplete Transactions
• Issue & Dehire Transactions
• Loscam Thailand Accounts
• Multi-factor Authentication
• Multi-line Matrix
• Offline Capability
• Online Dockets
• Pending Transaction Setup
• Pending Transaction Warnings
• Product Bundles
• Quick-add Data Forms
• Receipt Numbers

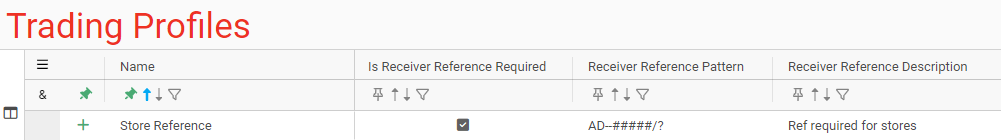

• Receiver Reference Formats
• Region
• Relocation Management
• Relocation Profiles
• Responsible Site
• Restore Rows
• Rollup Data
• Routes
• Run Sheets
• Selection Count
• Sent & Received
• Site Details

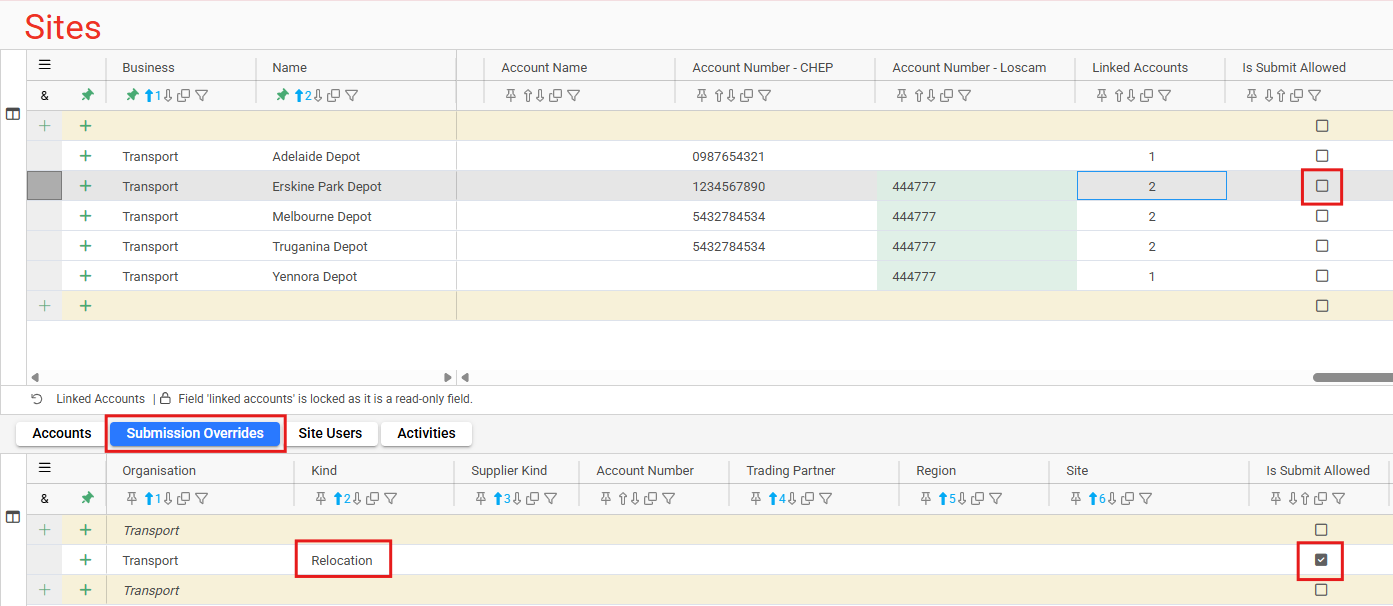

• Submit Method

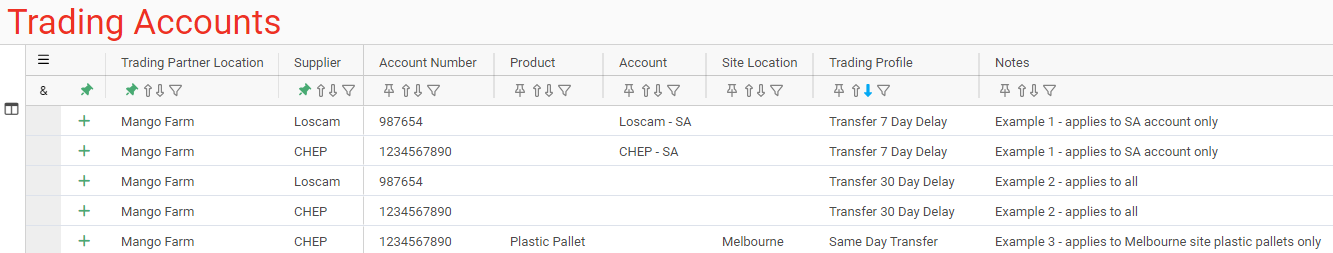

• Trading Account Scope

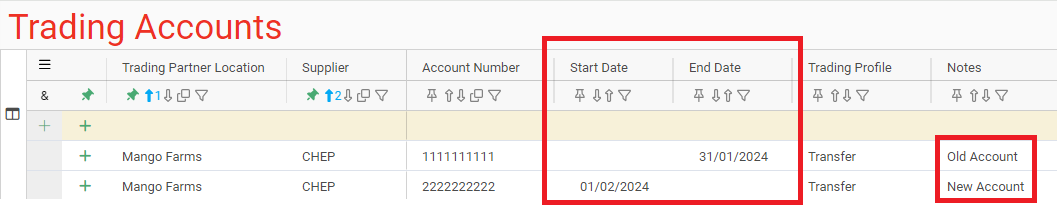

• Trading Account Start and End Dates
• Transaction Alerts
• Transaction Filters
• Unsubmitting & Unconfirming Transactions
• Verifying Data

Accept and Forward link arrow_upward

A common carrier process is to accept an 'on' transaction and immediately create the corresponding 'off' transaction. The Accept and Forward button in Pending Transactions allows this to happen more efficiently. To use:

1. Expand Operations within the navigation menu, then open Pending Transactions page.
2. Unhide Accept and Forward button column.
3. On a Transfer On or Loan Received transaction, click the Accept and Forward button.
4. This will accept the current pending transaction, and create a new transaction with the same reference but without a receiving trading partner.
5. Key the missing receiving trading partner to save the record.

Allowed Locations link arrow_upward

We can nominate which locations our site users are only allowed to key transactions to by using Allowed Locations. This use case is common for retail stores or sites that deal with minimal trading partners.

1. Expand Reference Data within the navigation menu, then open Sites page.
2. Unhide and untick Are All Locations Allowed column.
3. Set up allowed locations as single locations or regions:

Single Locations link arrow_upward

1. Expand Reference Data within the navigation menu, then open Locations page.
2. Tabs will appear at the bottom, open Allowed Locations detail grid.
3. On a new line, key our 'Site'.
4. Nominate a location using the dropdown list of 'Location'. Ensure Is Allowed is ticked.

Regions link arrow_upward

1. Expand Reference Data within the navigation menu, then open Locations page.
2. Unhide Region column.
3. Against our sites, key a name relevant in the Region field (e.g. SA). This will group our sites together.
4. Tabs will appear at the bottom, open Allowed Locations detail grid.
5. On a new line, key our 'Site Region' (e.g. SA.)
6. Nominate a location using the dropdown list of 'Location'. Ensure Is Allowed is ticked.

We can also nominate which locations our site users are not allowed to key transactions to by specifying Disallowed Locations.

1. Expand Reference Data within the navigation menu, then open Sites page.
2. Unhide and untick Are All Locations Allowed column.
3. Expand Reference Data within the navigation menu, then open Locations page.
4. Tabs will appear at the bottom, open Allowed Locations detail grid.
5. On a new line, key our 'Site', nominate a Location Region or Location our site is not allowed to key to. Ensure Is Allowed is unticked.

info

To override Allowed Locations, tick Are All Locations Allowed column against our site.

info

Region field enables grouping sites or locations together.

info

Alerts are setup in 'Disallowed Location' in Account Settings. These can be configured as no warning, highlight warning, notification warning, pop-up warning, or unauthorised error.

Allowed Products link arrow_upward

A trading partner can be limited to one or more products, this displays an alert when a transaction is entered for a disallowed product. Alerts can be configured in Account Settings under "Disallowed product".

1. Expand Reference Data within the navigation menu, open Locations page.
2. Select the trading partner to define allowed products.
3. Tabs will appear at the bottom, open Allowed Products detail grid.
4. Select either Account or Site Location, and the Product.

info

This is typically only necessary when the trading partner does not manage their account in 2ic Pallets. When a trading account is managed in 2ic Pallets, it most likely has authorised products assigned. Authorised Products take precedence, however if incorrect, it can be overridden by selecting 'Authorised Product Override' in our Allowed Products detail grid.

info

Only account super users can add authorised products.

Apply Custom Glossaries link arrow_upward

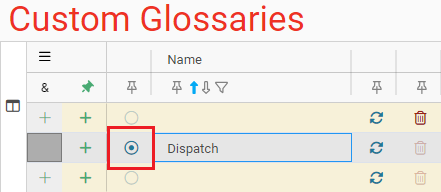

Users need to be assigned a custom glossary to be able to apply it, see assigning custom glossaries.

1. Expand Reference Data within the navigation menu, open Custom Glossaries page.
2. This will display the custom glossaries we are assigned to, e.g. Dispatch.
3. Click the apply button to select the custom glossary, this will turn the button blue.

Apply Views link arrow_upward

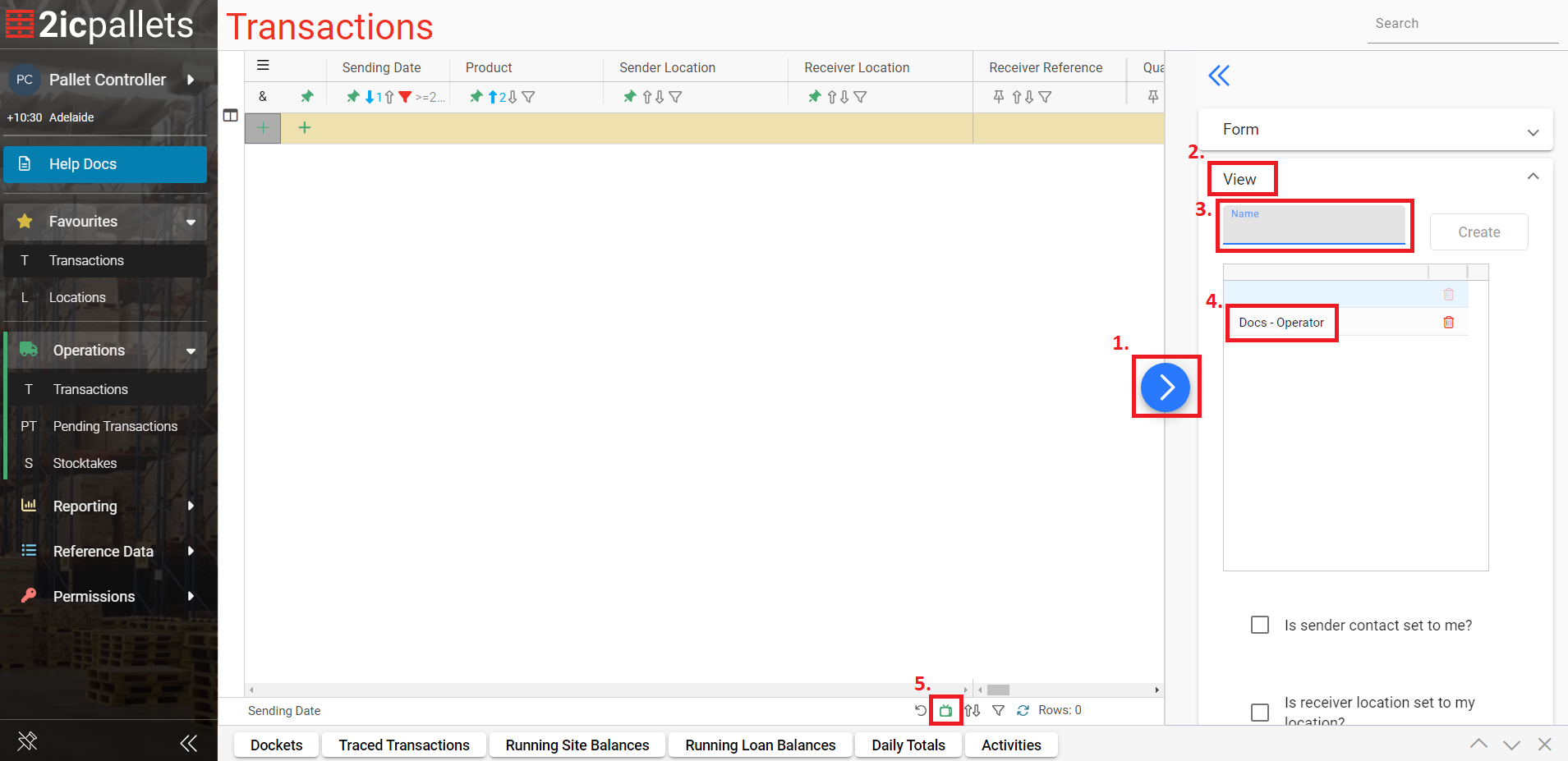

Users need to be assigned a view to be able to apply it, see assigning views.

1. Open Transactions grid, and click the blue arrow to open the side panel.
2. Click the View tool to expand view settings.
3. Click on Name to expand the views we are assigned.
4. Click on our view, e.g. Docs Operator to load the view.
5. We are able to move, sort and filter our columns. Remember to use the reset view button to re-apply the selected view.

info

Views can be assigned and applied to most grids, and are not limited to transactions.

Authorised Products link arrow_upward

Authorised products are shared with other trading partners that manage their accounts in 2ic Pallets. Users of other accounts will receive a warning if keying a transaction to or from our account with a product that we have not authorised.

Similarly, our users receive a warning if keying a transaction with a product that is not authorised for the account. For example, if our database has multiple CHEP accounts then it likely has several products, as they are shared across all accounts. If one account uses only 'CHEP pallets' then it may be nominated as an authorised product for that account to trigger transaction alerts for other products. Our users also receive warnings when keying transactions based on unauthorised products defined by the other trading partner. To configure:

1. Expand Reference Data within the navigation menu, open Products page.
2. On the existing product row, use the 'Add Authorised Product' button to add the product directly to our Authorised Products grid. This will prompt to add/update the authorised products and open the Authorised Products detail grid.

3. Repeat for additional products. Alternatively, key in manually:
   1. Tabs will appear at the bottom, open Authorised Products detail grid.
   2. Select the Account, which will prefill Supplier Kind.
   3. Select the authorised Product Name, which will prefill Supplier Code.

info

If no authorised products are defined for an account, then all products are authorised.

Bulk Function link arrow_upward

Using Shift on our keyboard while mouse clicking on particular buttons will offer to do this action in bulk based on the current grid filters. This is available with the:

• Delete button in all grids.
• Restore button in all grids.
• Verify Trading Accounts button in Locations grid.
• Recalculating sites.

Bulk selections can be done by:

• Selected rows.
• Loaded rows.
• Filtered rows (limited to the first 2000 rows).

Calculate Site Volumes link arrow_upward

We can recalculate our sites to display volumes.

1. Expand Reference Data within the navigation menu, then open Sites page.
2. Unhide columns First Transaction Date, Last Transaction Date, Last Month Transactions, Current Month Transactions, and Average Transactions.
3. Against one of our sites, click the Recalculate button. This will populate the figures into the unhidden fields.

info

This features is available to all users.

Cancelled Transactions link arrow_upward

It is best to cancel transaction rows rather than to delete. Cancelling and adding a note to the transaction avoids further investigation during the reconciliation process. Commonly, users cancel when:

• The transaction record has been raised in error, and the user does not have permission to delete the row.
• The transaction record was not received, or is different.

Compare Tool link arrow_upward

All compare tools contain a toggle mode that cycles between three options to display differences. These include non-matching fields, column fields, and all fields.

Activity compare link arrow_upward

Each activity detail grid contains the Compare button on either a 'create', 'update', or 'delete' activity row.

1. Open a main grid, e.g. transactions, and click on a transaction row.
2. Tabs will appear at the bottom, open Activities detail grid.
3. Click the 'Compare' button, which will open the Activity Compare tool. This tool compares existing values with the previous values outlined in the activity row.
4. Fields selected in green will be updated. Existing values are initially highlighted green. Switch values accordingly and click Update to save.

info

This can be done in any page that has an activities detail grid, and is not limited to transactions.

Link compare link arrow_upward

Link compare allows users to compare the selected values in a main grid to a value in the detail grid. This is typically used in Pending Transactions, where it compares a pending transaction row to an existing transaction row. Clicking 'Is Linked' on a row will open the Link Compare tool.

Row compare link arrow_upward

Row Compare allows users to compare the selected values with another row within the same grid. In the side panel of any Grid, open Row Compare tool. By clicking the pink Compare Row button, it will highlight the selected row pink. Clicking on another row will compare values with those selected.

Data Sharing link arrow_upward

Unfavourable changes link arrow_upward

Pop-up alerts have been added when unfavourable or significant changes are made to existing transactions. Unfavourable or significant changes include:

• Changing product,
• Increasing quantity for an 'on',
• Decreasing quantity for an 'off',
• Changing effective date to an earlier date for a transfer on,
• Changing effective date to a later date for a transfer off.

When these existing transactions are updated within 7 days of today, it will prompt to share the above changes with the other trading partner.

• Clicking 'Yes' will update and send the updated transaction to the other trading partner's pending transactions, if they accept submissions.
• Clicking 'No' will update the transaction but will not send a pending transaction to the other trading partner.
• Clicking 'Cancel' will not do anything to the row.

Receipt numbers link arrow_upward

A receipt number is a 6-digit number that is generated for 'on' transactions in the receivers database. It is copied into the corresponding 'off' transaction in the sender's database to provide proof-of-delivery, i.e. it replaces a signature on paper.

When a transaction does not match the receivers database, a ? icon is attached to the row. This will only appear for users with 'Reconcile Bills' permission. The ? icon can be removed by unhiding and ticking the Is Valid field against the transaction.

Clicking this icon will display a notification and open Activities detail grid and focus the activity row that has the changes. Or, a pop-up offering to update the row with the changes if the:

• effective date is up to 30 days difference and not in the senders favour.
• effective date is up to 15 days difference and in the senders favour.
• quantity is up to 10 difference and not in the senders favour.
• quantity is up to 5 difference and in the senders favour.

Clicking the Compare button against the focused row will open Activity Compare tool and compare our transaction with their transaction.

Default Sender link arrow_upward

Docket emails and loan metric emails can be configured to use the sender of no-reply@2icsoftware.com by default. To use this, open Account Settings, under General | Emailing, change Default sender to (No Reply).

Destinations link arrow_upward

Different delay days can be setup depending on the "Destination" of the transfer. If a receiver has multiple sets of trading rules, the destination field can be used to distinguish between them, e.g. Woolworths have different delay days across particular Loscam accounts.

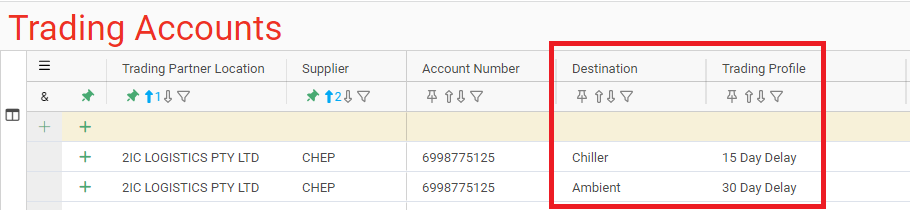

1. Expand Reference Data within the navigation menu, open Trading Accounts page.
2. Unhide Destination column.
3. Specify a Destination name against the trading partners account and assign the corresponding trading profile.

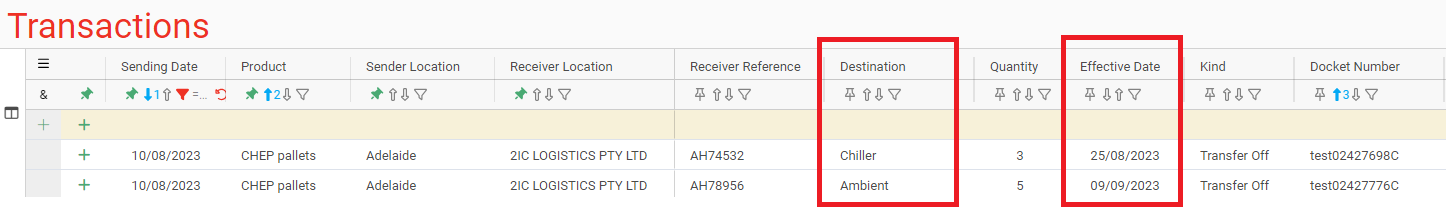

1. Expand Operations within the navigation menu, open Transactions page.
2. Unhide Destination column, and key a transfer off with the matching destination name against the trading account. It will alter the effective dates accordingly.

Duplicate Filtering for Trading Partners link arrow_upward

In Locations link arrow_upward

1. Expand Reference Data within the navigation menu, open Locations page.
2. Filter Kind field to 'Trading Partner', and set our supplier's Account Number column to 'has a value.' If there are multiple trading accounts associated with the trading partner, ### will be displayed and is unable to be sorted.
3. Click the duplicate filter icon in one or more of the available columns:
   • Name
   • Code
   • Account Number - CHEP
   • Account Number - Loscam
   • Account Number - VPS
4. Review duplicates accordingly.

In Trading Accounts link arrow_upward

1. Expand Reference Data within the navigation menu, open Trading Accounts page.
2. Filter Account Number column to 'has a value', and any other columns relevant.
3. Sort by Account Number.
4. Click the duplicate filter icon in one or more of the available columns:
   • Name
   • Supplier
   • Account Number
5. Review duplicates accordingly.

info

For a detailed process, see maintaining trading partners.

info

Most columns can be filtered on duplicates.

Duplicate Filtering for Transactions link arrow_upward

1. Expand Reference Data within the navigation menu, open Transactions page.
2. Click the duplicate filter icon in the available columns.
3. Review duplicates accordingly.

info

Most columns can be filtered on duplicates.

General Accounts link arrow_upward

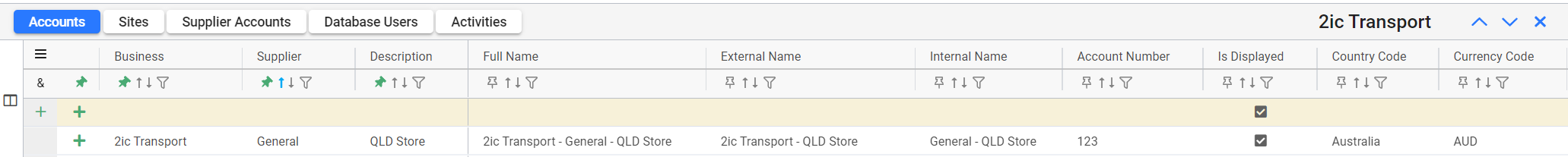

General accounts can be used to track customer-owned products. While there is only one 'General' supplier, multiple general accounts, products and service centre locations can be set up.

1. Expand Reference Data within the navigation menu, open Organisations page.
2. Tabs appear at the bottom of the grid, open the Accounts detail grid.
3. Key in business name, select General as supplier, and key in a description. Full/External/Internal name will auto-populate.
4. Key in account number, country code, currency code and contact. Account number can be made up, however is recommended to match 2ic Pallets desktop app account number. If multiple general accounts, set Group field to supplier name.
5. Link sites to supplier accounts.
6. Create general products - if multiple general accounts, set Group field to supplier name.
7. Create general trading accounts of trading partners that will trade general products.
8. Create a general service centre location - key in supplier name, select Service Centre as kind, select General as supplier - if multiple general accounts, set Group field to supplier name.
9. Create issue transactions to set opening balances at sites and trading partners.

Grid Cell Shading link arrow_upward

In Transactions and Pending Transactions pages, related rows are identified by shading cells:

• 'Multi-line' transactions with the same docket number (green shading).
• Traced transactions with the same sender reference (light-blue shading) or receiver reference (dark-blue shading).
• Original transaction and linked alterations with the same alteration reference (purple shading).

Each shading mode can be toggled on or off in View Settings.

Incomplete Transactions link arrow_upward

Commonly, transactions are initially marked incomplete due to:

• Issues & Dehires
  • Issues and dehire transactions need to be initially incomplete as the service centre will generate their own docket number. Updating the transaction with the provided docket number will tick the record as complete.
• Pallet Transfer Authorities (PTA)
  • If a receiving trading partner has a PTA policy where they do not accept others' docket numbers, transactions need to be initially incomplete as the receiving trading partner will generate their own docket number. Updating the transaction with the provided docket number will tick the record as complete.
• Relocations
  • Relocations can initially be made incomplete while the user at the receiver site completes it. However, it is better to use the submit & confirm system, where relocation transactions are handled the same as loans and transfers.
• Sent & Received
  • Using the incomplete box for these transactions tend to mean the record is being double-handled. Ideally, a transaction is completely entered, and there is no need to return to it and provide missing information.
  • Instead of using sent & received for a delivery, i.e. keying an incomplete transaction with sent quantity, then updating/completing it with received quantity when the truck returns, record these as separate transactions. This can be done using the 'Add Return Row' button, or the keyboard shortcut of Alt+T to create the new return transaction based on the selected row. See more at sent & received.

An incomplete transaction will automatically complete when:

• It has a created timestamp at least 10 minutes earlier than now, and one of the following fields are changed:
  • Sending date
  • Receiving date
  • Sender location
  • Receiver location
  • Carrier
  • Sender reference
  • Receiver reference
  • Carrier reference
  • Internal reference
  • External reference
  • Quantity
  • Kind
  • Docket number

Issue & Dehire Transactions link arrow_upward

If our supplier requires a printed docket for an issue or dehire, generating a transaction with our docket number helps track it. Ensure the account setting of 'Are docket numbers generated for issue and dehire transactions?' is ticked as it marks our transaction as incomplete, because the supplier is expected to generate their own replacement docket number. Updating the transaction with their docket number will automatically complete the row. This is the recommended process.

Alternatively, we can key the issue/dehire transaction when we receive the suppliers generated docket number. If this is the process, ensure the account setting of 'Are docket numbers generated for issue and dehire transactions?' is unticked.

Loscam Thailand Accounts link arrow_upward

Loscam Thailand require each customer to have multiple accounts for different products.

1. Expand Reference Data within the navigation menu, open Organisations page.
2. Tabs appear at the bottom of the grid, open the Accounts detail grid.
3. Key in Business Name, select Loscam as Supplier, and key in a description. Full/External/Internal name will auto-populate.
4. Key in Account Number, Country Code, Currency Code and Contact.
5. Repeat for other Loscam accounts. Refer to linking sites to accounts.
6. Create multiple Loscam products.

Multi-factor Authentication link arrow_upward

Multi-factor authentication can be enforced across a database.

1. Expand Reference Data within the navigation menu, open Organisations page.
2. Against the database, tick Is MFA Required.
3. Any new user added to this database will have Is MFA Required ticked. Existing users will need to have Is MFA Required manually ticked by a group super user.

Multi-factor authentication can also be enforced for particular users, and is not required to be switched on across the whole database.

1. Expand Permissions within the navigation menu, open Users page.
2. Against the user, tick Is MFA Required.

When that user next signs in, they will be prompted to setup multi-factor authentication. When a user has MFA enabled and setup, Is MFA Enabled will be ticked against their user.

info

This function can only be configured by a group super user.

Multi-line Matrix link arrow_upward

Multi-line transactions are transactions with the same docket number but different products. Multi-line Matrix is an efficient way to process these. It is in the side panel of the Pending Transactions page.

The multi-line matrix allows for processing multi-line submitted transactions and creating outbound transactions. Entering the 'outbound quantity' in the matrix immediately creates an opposite direction pending transaction, ready for accepting. Other products can be added in the matrix by clicking 'add product' and keying the 'inbound quantity' or 'outbound quantity', this will immediately create the pending transactions, ready for accepting.

Clicking the delete icon on the 'inbound quantity' or 'outbound quantity' fields will delete the pending transaction.

Offline Capability link arrow_upward

2ic Pallets allows printing dockets while offline before rows are saved to the server. When you are offline, the offline icon will appear in the navigation panel.

Once back online, the mutation queue will submit those changes that were made offline. The below features are to complement this:

Retaining invalid rows link arrow_upward

Invalid rows are incomplete rows that are either missing a required field, or cannot be saved due to an error. Clicking the ! in the status column will display the reason it is not saving. These invalid rows will be retained and moved to the top of the grid when a user sorts or filters. These invalid rows can be removed from the grid by clicking the grid's refresh button in the bottom right corner, or the individual row's refresh button.

Saved rows link arrow_upward

When rows are completely saved, a green tick is added to the status column. If there is no green tick, it means it has not finished saving completely to the server.

Unsaved dockets link arrow_upward

Printed dockets will display '(unsaved)' text at the bottom of the page when there are unsaved changes in the mutation queue.

Unsaved changes link arrow_upward

When a lot of requests are queued up to send to the server, e.g. after an import, and you close the tab or browser, the next time you open the web app, the mutation queue will continue to send to the server.

Online Dockets link arrow_upward

An online docket is the same format as printed dockets, and can be shared with others as the URL (web address) does not change. Anyone with the web address can view an online docket, but a receiver's or driver's details are required to confirm a docket. If the online docket was shared, the logged in users contact details will prefill. To confirm an online docket, select your role (Sender, Driver, or Receiver) will click Confirm Docket. This generates a confirmed timestamp and is recorded against the transaction's activities.

If the Driver or Receiver confirmed this docket by mistake, they can ctrl-click Confirm Docket to un-confirm the docket. This will remove the previously generated confirmed timestamp and is recorded against the transaction's activities.

Pending Transaction Setup link arrow_upward

Sites using the web app can submit transfer off or loan sent transactions to another sites pending transactions.

To receive pending transactions:

1. Expand Reference Data within the navigation menu, open Organisations page.
2. Tabs appear at the bottom of the grid, open Sites detail grid.
3. Against these sites, tick 'Are submissions Allowed'.
4. The sender site must be linked in the trading partner catalogue. See add/link/sync from the trading partner catalogue for more detail.

To submit transactions:

1. In Account Settings, ensure 'Are transfer off transactions submitted automatically' and 'Are loan sent transactions submitted automatically' are ticked. This is ticked by default.
2. The receiver site must be linked in the trading partner catalogue. See add/link/sync from the trading partner catalogue for more detail. The Submit Method against this location needs to be marked "Direct to Pending".

Pending Transaction Warnings link arrow_upward

Pending transaction alerts are implemented when there is a significant or unfavourable change to a submitted row. These alerts include:

• Changing product is a significant change,
• Changing sender location is a significant change,
• Changing receiver location is a significant change,
• Increasing quantity for an 'on' is an unfavourable change,
• Decreasing quantity for an 'off' is an unfavourable change,
• Changing to a transfer on is an unfavourable change (for a transfer off only),
• Changing to a loan received is an unfavourable change (for a loan sent only),
• Changing effective date to an earlier date for a transfer on is an unfavourable change,
• Changing effective date to a later date for a transfer off is an unfavourable change.

info

For users without 'Reconcile Bills' permission, this alert is a pop-up and if a change is made, it will be marked as 'Is Escalated' for a reconciling user to review and confirm.

info

For users with 'Reconcile Bills' permission, this alert is a warning notification.

Product Bundles link arrow_upward

Product bundles create transactions based on Bundle Quantities. Selecting a product bundle when keying a transaction creates the corresponding row associated with the bundle quantity.

1. Expand Reference Data within the navigation menu, open Products page.
2. Against each product bundle, assign the same name in 'Bundle' field for reference, e.g. 'Keg Bundle'.
3. Against those products, key the associated quantity, e.g. 12 kegs fit on 1 CHEP pallet.
4. Now, when we key a transaction for Kegs, using Alt+P will determine the quantity of pallets required to fit that amount of kegs. It does not necessarily need to be equal, as the amount of CHEP pallets will be rounded up to fit the amount of kegs.
5. Open Transactions page, key a transaction for Kegs, e.g. 20 kegs will fit on 2 CHEP pallets.
6. Use Alt+P to create the corresponding CHEP pallet transaction, e.g. 2 CHEP pallets.

info

CHEP require a specific docket format, therefore the account settings for General must comply with these requirements, i.e. same prefix.

Quick-add Data Forms link arrow_upward

The quick-add/edit button is in each lookup list (products, locations and contacts).

Clicking this button opens the quick-add data form. Alternatively, this form can be opened when entering a value not found in the database (triggering a pop-up), manually from the side panel, or by unhiding the corresponding Edit columns. This data form prefills details from the selected row and searches:

• The edit icon displays data from the selected row.

• The search icon displays matching results within the database.

• The catalogue icon displays matching results from the catalogue.

Receiver Reference Formats link arrow_upward

If trading partners require a specific format of a receiver reference, i.e. a purchase order, a custom format can be setup. If a non-matching receiver reference for a transfer-off is entered, a warning is displayed. The transaction can still be saved.

1. Tick 'Is Receiver Reference Required'.
2. Key in Receiver Reference Description to refer back to.
3. Specify Receiver Reference Format, i.e. a reference 'AD--00123/K' would have format 'AD--#####/?'.
   • '#' for a single numeric character, or the literal # character, i.e. use it in place of [0-9]
   • '?' for a single character, i.e. use it in place of any character

Region link arrow_upward

Region field enables grouping locations together to define configurations.

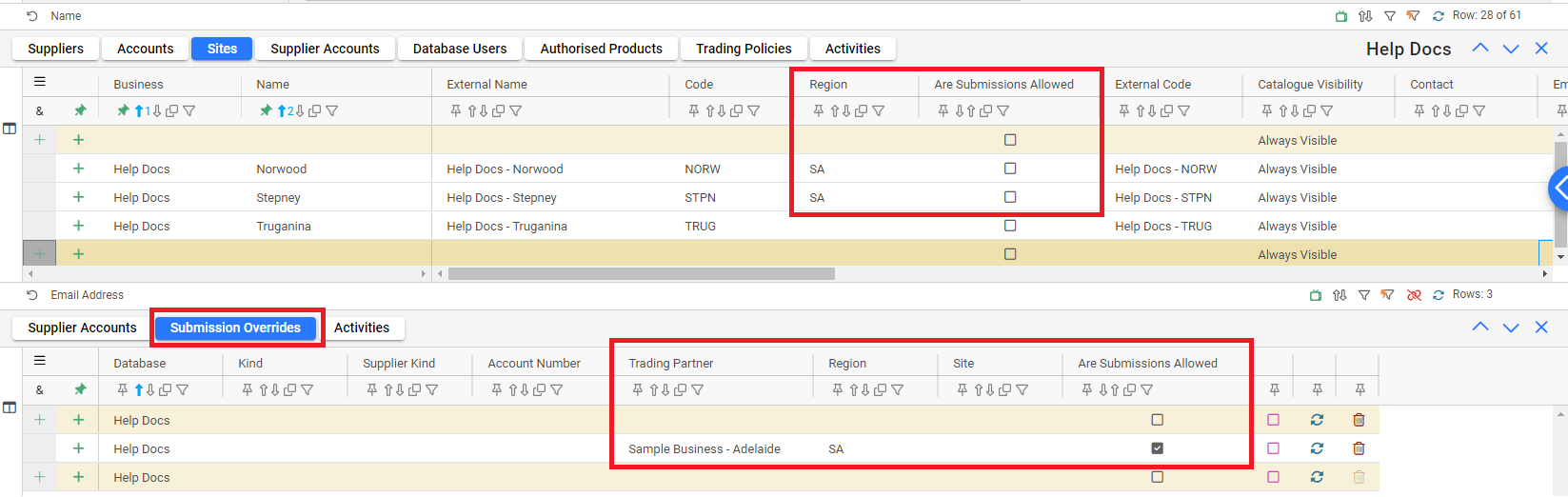

In submission overrides link arrow_upward

Use the region field to group multiple sites to define submission overrides:

1. Expand Reference Data within the navigation menu, open Organisations page.
2. Tabs appear at the bottom of the grid, open Sites detail grid.
3. Against multiple sites, assign Region.
4. Open Submission Overrides detail grid.
5. On a new line, key Trading Partner and Region.
6. Tick 'Are Submissions Allowed'. In the below example:
   • Allow pending transactions from the trading partner "Sample Adelaide",
   • The trading partner "Sample Adelaide" can only submit transactions to the Norwood and Stepney sites (due to Region), and not to the Truganina site,
   • Disallow pending transactions from all other trading partners.

Relocation Management link arrow_upward

Relocations are internal transactions that are sent between sites that belong to the same account. Below is a typical relocation workflow for submitting, confirming and resolving relocations. For steps on particular workflows, see processing pending relocations.

1. Sender creates a relocation transaction, and it is submitted automatically.
2. In pending transactions, unprocessed relocations (those without a confirmed timestamp) are only visible to the receiver.
3. Receiver processes the relocation transaction via accepting/cancelling/updating. When accepting or updating with a greater quantity, it is confirmed automatically. When it is cancelled, or updated with a lesser quantity, it will not be confirmed automatically, will be sent to the senders pending transactions page for approval, and will be removed from the receivers pending transactions page.
4. Receiver clicks the orange delete button against any processed row, which deletes processed relocations.
5. Cancelled and updated (with lesser quantity) relocations from the receiver site will appear in the senders pending transactions page for review.
6. Sender site reviews these changes, and contacts the receiver site separately to resolve discrepancies. Sender clicks the approve button, and this populates the confirmed timestamp.
7. Sender clicks the orange delete button against any processed row, which deletes processed relocations, including those they have approved.

Relocation Profiles link arrow_upward

This use case is common for a retailer that creates relocations to a regional store. For setup, see configuring relocation profiles.

A relocation is keyed from the distribution centre to a store site, and uses Alt + T to create the return transaction. If there is a relocation profile that matches the source transaction, those settings are used.

Relocation profiles can apply to a particular Sender Location, i.e. 'Queensland DC', or the Sender Region may be specified to apply rules to a region of sites, i.e. 'Distribution Centres.'

If 'Is Return Transfer' is ticked, the return transaction will be a transfer off rather than a relocation, and if a 'Return Location' is nominated, i.e.:

• The carrier that has the store delivery contract, then the generated transfer will be to that trading partner.
• The store returns are immediately dehired, then the generated transfer will be to a service centre location.

Responsible Site link arrow_upward

Each loan location should have a responsible site assigned. This site will be accountable for managing the loan location and allocating associated costs. To assign a responsible site:

1. Expand Reference Data within the navigation menu, open Locations page.
2. Against the trading partner location, ensure Responsible Site column is unhidden.
3. Select the site as the dropdown.

info

Site-level users can update transactions for loan locations where their responsible site is assigned, even if they are not authorised for that site.

info

Settlement transfers require a responsible site. The transaction will default to the linked responsible site for the location. If this is empty, users need to unhide Responsible Site Name column and manually select the responsible site. This is to ensure all transactions are allocated to sites.

info

Editing Responsible sites is limited to group or account users with Reconcile Bills permission.

Restore Rows link arrow_upward

When deleting records, the refresh button on that row will turn into a restore button. When clicking this button, a prompt will appear offering to restore the row. Clicking 'Yes' will re-add the selected row to the top of the grid. Clicking Cancel or off the row will not make any changes.

Rollup Data link arrow_upward

When multiple numeric cells are selected, the status bar displays:

• Average value of all selected numeric cells.
• Count of selected numerical cells.
• Sum of selected numeric cells.

info

This feature is not visible on small screens.

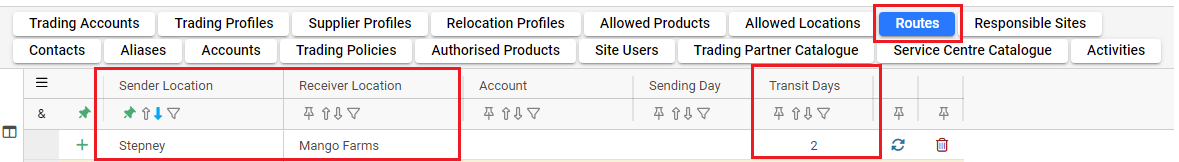

Routes link arrow_upward

A route is a transit day assigned to a trading partner. Transit days are used to calculate the receiving date based on the sending date.

1. Expand Reference Data within the navigation menu, open Locations page.
2. Click on a new blank row.
3. Tabs will appear at the bottom, open Routes detail grid.
4. Specify Sender Location as our site and Receiver Location as the trading partner we'd like to add the route to.
5. In the Transit Day column, specify transit days, e.g. 2.
6. Now when we raise transactions based on this setup, the receiving date will populate based on the transit days, e.g. 2 days later.

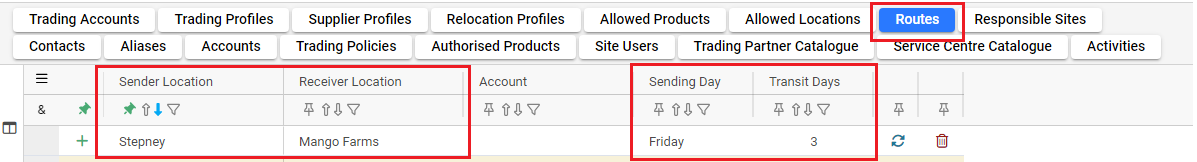

Optional route configuration link arrow_upward

Optionally, we can specify the transit days from a particular day. This is most common over the weekend, e.g. specifying Friday as a sending day and 3 transit days will mean transactions keyed on a Friday will have a receiving date of 3 days later, on Monday.

1. Ensure we are in the Routes detail grid.
2. Specify Sender Location as our site and Receiver Location as the trading partner we'd like to add the route to.
3. In the Sending Day column, specify a day, i.e. Friday, and specify transit days, i.e. 3.
4. Now based on this setup, when we raise a transaction that falls on a Friday, it will populate a receiving date of 3 days later, on the Monday.

Run Sheets link arrow_upward

Run sheet reports are provided as an alternative to printing separate dockets. They are suitable for a truck driver that is performing multiple pickups and/or deliveries on the same 'run'.

1. Expand Operations within the navigation menu, open Transactions page.
2. Ensure the 'Carrier' column is displayed.
3. Enter a variety of transaction types (loan sent, loan received, transfer off, and transfer on) for the run, and specify the same 'Sending Date' and 'Carrier' for each row.
4. Click the run sheet button for one of the rows to view the report:


info

'Received' and 'Quantity' fields are printed as empty boxes for Loan Sent rows when 'Sent' is specified and 'Received' is zero. Similarly, Loan Received rows can have empty boxes for 'Sent' and 'Quantity'. The boxes are for the driver to manually record the number of exchanged empty products and the resulting net quantity.

Selection Count link arrow_upward

When multiple cells are selected, the grid status bar will display a count of multiple cells/rows/columns, e.g., when you highlight 4 rows and 2 columns, the selection count will display 4R + 2C.

Sent & Received link arrow_upward

Transactions link arrow_upward

We recommend creating separate on and off transactions instead of using sent and received. The benefits of creating separate on and off transactions are:

• All transactions are marked complete, no further follow up required.
• Makes tracing possible.
• Aged loan balances are accurate, as these are based on net quantity, but empty returns should be reducing the oldest aged balance.
• Reporting can provide a sense of the trading partner volume, e.g. 500 pallets inbound over a period will appear as much less if empty (sent) pallets are deducted from each loan transaction.

Benefits of sent/received are:

• Fewer transactions.

Printed Dockets link arrow_upward

Printed dockets are typically generated by the sender, so when using sent/received quantity, the send quantity is populated. If you want to know the 'point-of-view' of how many you've sent and received, refer to the transaction line in your transactions grid.

Site Details link arrow_upward

Our site contact details can be updated. These changes will appear on our dockets.

1. Expand Reference Data within the navigation menu, open Organisations page.
2. Tabs appear at the bottom of the grid, open the Sites detail grid.
3. We can edit the following fields:
   • Name
   • Code
   • Contact
   • Email Address
   • Phone Number
   • Address
   • Country

info

Updating site locations is limited to group super users.

Submit Method link arrow_upward

Submit Method defines how a transaction is communicated to the receiver.

• Online Docket is equivalent to no submitting. An online docket is automatically created for every transfer off, so this option is always available.
• Direct to Pending automatically submits and receives to the receivers pending transactions for them to process accordingly. Trading partners that are linked to a catalogue trading partner should have this set as default.
• Print Docket displays the print icon blue, and other methods of submitting can be done. Most trading partners and sites will have this set as default.
• Email Docket displays the email icon blue, and other methods of submitting can be done.

Trading Account Scope link arrow_upward

In general, it is best to have trading rules that apply across the whole business, however, trading accounts with different trading rules can be defined by Account, Site or Product scopes:

• Example 1: For users assigned to SA account, when keying any CHEP or Loscam equipment, delays days will be as per profile "Transfer 7 Day Delay."
• Example 2: For users that are not assigned to SA account (including users who are assigned to other accounts), delay days wil be as per profile "Transfer 30 Day Delay."
• Example 3: For specific product and site, e.g., when Melbourne site users key plastic pallet transactions, it will be as per profile "Same Day Transfer." For any other CHEP or Loscam products, the delay days will be as per the profile of "Transfer Off - 30 Delay Days."

Trading Account Start and End Dates link arrow_upward

Specifying a start date and end date against a trading account is most common when our trading partner opens up a new account, but is still trading with the old account temporarily. Specifying these dates allow us to retain existing transactional data, and create transactions to the old account, but still create future transactions to the new account - under the same trading partner.

For example, our trading partner Mango Farms has opened up a new CHEP account effective 01/02/2024. They still have their old CHEP account active for alterations, and for any transactions raised before the new account is live. This means we need to set an end date on the old account, and a start date on the new account.

1. Expand Reference Data within the navigation menu, open Trading Accounts page.
2. Unhide columns Start Date and End Date.
3. Against the old account number, leave start date empty, and key end date, i.e. 31/01/2024.
4. Against the new account number, key start date, i.e. 01/02/2024, and leave end date empty.

Transaction Alerts link arrow_upward

There are different kinds of transaction alerts that can be configured for various functions and are found in Account Settings:

1. (None) - no alert.
2. Highlight warning - row is highlighted orange and saves row.
3. Notification warning - row is highlighted orange with a message in left corner and saves row.
4. Pop-up warning - pop-up appears to click OK or Cancel. Clicking OK saves the row. Clicking Cancel or clicking off the row does not save the row.
5. Unauthorised error - message appears in left corner and does not save the row.

Duplicate alerts link arrow_upward

Duplicate transaction records are identified in the grid if the account settings for either duplicate docket number, duplicate sender reference or duplicate receiver reference alerts are set as notification, pop-up warning or unauthorised error.

These will be coloured blue and are existing saved records. Displaying these duplicates can prevent users from keying the same record again.

Transaction Filters link arrow_upward

Any reference filter link arrow_upward

All Reference columns have an Any Reference button. Searching in either of the five reference fields (carrier reference, sender reference, receiver reference, docket number, internal reference), and clicking the Any Reference button will search this text across all reference columns.

Either location filter link arrow_upward

Sender Location and Receiver Location columns have an Either Location button. Filtering on a location in either the Sender Location or Receiver Location column, and clicking the Either Location button will display results for that trading partner, in either the sender location or receiver location. This replaces the synchronise location filters tool in the side panel. This is available in Transactions and Pending Transactions grid.

Unsubmitting & Unconfirming Transactions link arrow_upward

Unsubmitting is deleting a previously submitted transaction from the receiver's pending transactions grid. This is triggered by:

• Alt+clicking the submit button or,
• Deleting the transaction or,
• Changing the receiver location. This unsubmits from the previous location and re-submits to the new location.

Unconfirming is clearing the confirmed timestamp & receipt number from the corresponding transaction in the sender's database.

• Alt+clicking the confirm button.

Verifying Data link arrow_upward

Trading Account Verification link arrow_upward

The Verify tool in Locations checks linked trading accounts for missing or inconsistent data, and provides autofix.

1. Expand Reference Data within the navigation menu, open Locations page.
2. Focus on the location to verify, then click the 'Verify' button.
3. To bulk-verify and auto-fix, open the right-side panel by clicking the blue arrow.
4. Expand Verify tool. Select the options and whether to Auto-fix. See below for detail.

• Missing trading account identifies trading partners without a trading account.
  Auto-fix adds an empty trading account and uses the default trading profile from our View Settings (if not defined, it will leave this blank.)
• Missing baseline trading account identifies trading partners without a baseline trading account. Every trading account should have at least one trading account without trading account scope (no account, no product, no site, and no destination.)
  Auto-fix creates a baseline trading account if there is only one account number and one trading profile across all trading accounts.
• Missing supplier in trading account identifies trading accounts without a supplier, but with an account, product or profile defined.
  Auto-fix unavailable.
• Missing account number in trading account identifies trading accounts without an account number but are assigned a transfer profile.
  Auto-fix unavailable.
• Missing trading profile in trading account identifies trading accounts without a trading profile.
  Auto-fix sets trading profile using the default trading profile from our View Settings (if not defined, it will leave this blank.)
• Redundant trading account identifies trading accounts that are nearly identical, but one has a trading scope that is unnecessary.
  Auto-fix deletes redundant trading accounts.
• Duplicate trading account identifies trading accounts with duplicate account number, supplier, trading profile and trading account scope.
  Auto fix deletes duplicate trading accounts. Generalising refers to trading accounts with unnecessary trading account scope. For example, if there is only one trading account for a supplier and the site field is unnecessarily defined, generalising will remove the unnecessary site field.

info

This feature is available to group super users only.

Trading Policy Verification link arrow_upward

The Verify tool in Trading Policies checks linked trading policies for missing or inconsistent data.

1. Expand Reference Data within the navigation menu, open Locations page.
2. Focus on a blank row, then open Their Trading Policies detail grid.
3. Open the right-side panel by clicking the blue arrow.
4. Expand Verify tool. Select the options to verify. See below for detail.

• Missing trading policies identifies scope not covered by existing policies.
• Redundant trading policies identifies overlapping policies that cover the same scope with identical trading rules.
• Inconsistent trading policies identifies discrepancies by comparing policies with trading accounts and their associated trading profiles.
